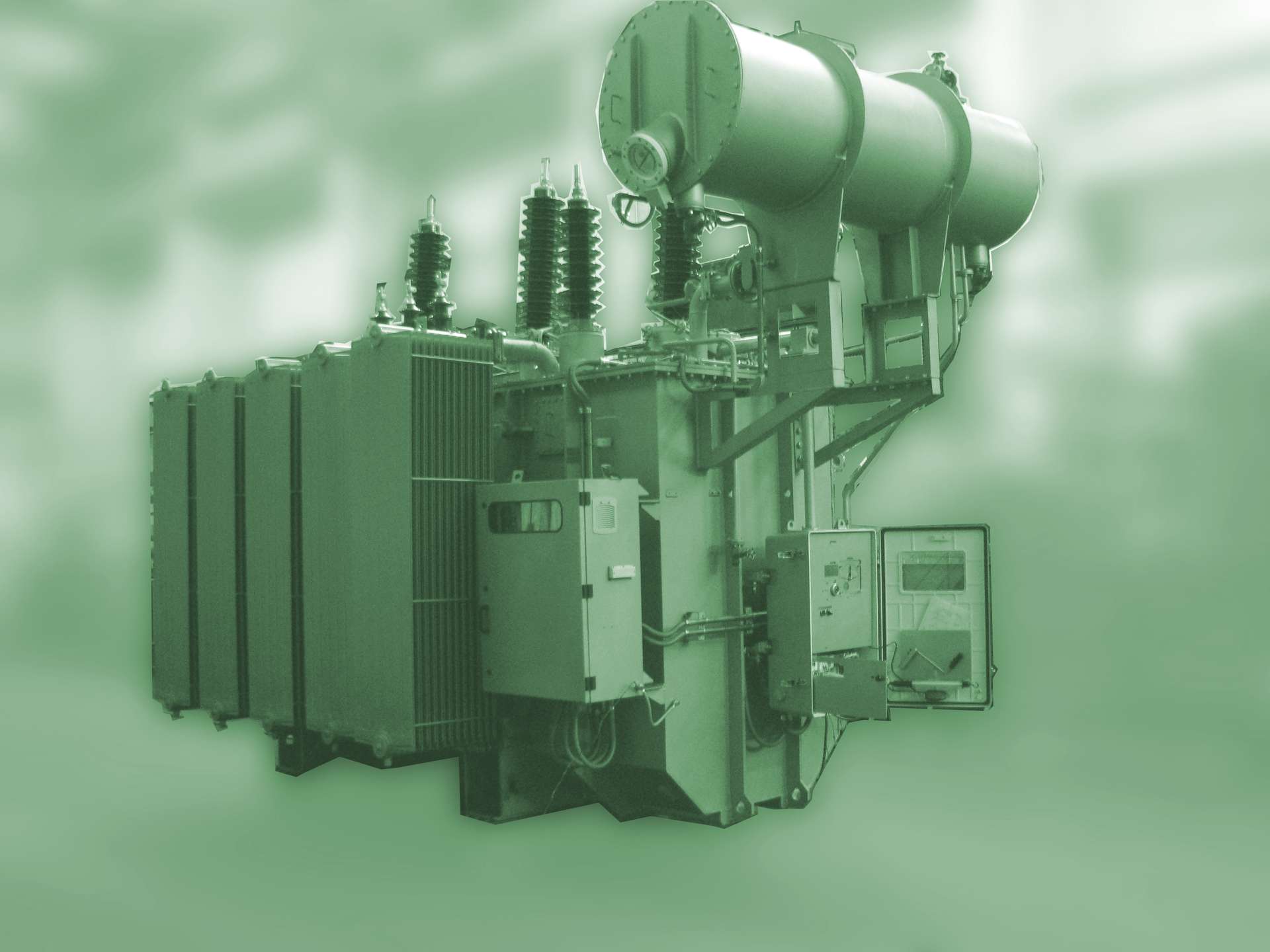

10 - 63 MVA medium power distribution transformers with OLTC/DETC and nominal voltages of 123 kV

  • Home
  • 10 - 63 MVA medium power distribution transformers with OLTC/DETC and nominal voltages of 123 kV

Main characteristics

  • For indoor or outdoor applications
  • Power from 10 MVA up to 60 MVA and voltage up to 123 kV, three phase units (high voltage levels on request)
  • Frequency 50/60 Hz
  • With normal or low level losses
  • Cooling system: ONAN, ONAF, OFAF
  • With NLTC or OLTC
  • Free breathing construction or atmosel construction
  • Wide range of accessories
  • Standards: IEC 60076, ANSI C57
  • With normal or low noise level

Customer benefits

  • Low level losses
  • Low costs operating and maintenance
  • Short delivery time
  • Rapid installation
  • Facilities for parallel operation in banks

TYPERATED OUTPUT (KVA)VOLTAGE (KV)VOLTAGE CONTROL (%)VECTOR GROUPPCS.YEAR of DELIVERYAPPLICABLE STDCOUNTRYCUSTOMER
TTUS ONAN10000110/20± 9x1,78YNd1112010IECROMANIACEZ DISTIBUTIE
TTUS ONAN10000110/22± 9x1,78YNd1112010IECROMANIAENERGOTECH EON MOLDOVA
TTUS ONAN/ONAF20000/25000110/21/6± 9x1,667YNyn0d12010IECBULGARIATERNA ENERGY GREECE
TTUS ONAN25000110/22± 9x1,78YNd1112010IECROMANIAENERGOTECH EON MOLDOVA
TTUS ONAF25000110/20± 9x1,78YNd1122010IECROMANIAPIRELLI ICCO - Brasov
TTUS ONAN/ONAF40000115/20,8± 2x1,78YNd1112009IECROMANIAROMIB - BUCURESTI
TTUS ONAF25000110/22± 9x1,78YNd1112009IECROMANIAICCO - Brasov
TTUS ONAN16000110/20,5± 9x1,78Ynd1112009IECROMANIAMONTAJ ELECTRIC - BUCURESTI
TTUS ONAN ONAF4800066/11± 10x2,5Dyn1122009IECEGYPTABB
TTUS ONAN/ONAF32000/4000066/6,3±8x1,25Dyn1112009IECEGYPTENTRAC
TTUS ONAN ONAF40000132/6,63x1.67; -9x1.67YNd122009IECJORDANNEPCO
TTUS ONAN40000115/20,8± 10x1,5YNd1152009IECROMANIAELECTRICA MUNTENIA
TTUS ONAN40000115/10.4-20,8± 10x1,5YNd1112009IECROMANIAELECTRICA MUNTENIA
TTUS ONAN40000115/20,8± 10x1,5YNd1112009IECROMANIAENEL - BUCURESTI
TTUS-ONAN32000/16000/ 16000132/6,3/6,3± 8x1,5YNd11d1112009IECIRAQURNASHA
TTUS ONAN/ONAF25000150/216x1.25;-10x1.25Dyn112009IECGREECESORONIS
TTUS ONAN/ONAF25000150/15,75/216x1.25;-10x1.25Dyn112009IECGREECESORONIS
TTUS-ONAN16000110/22± 9x1,78YNd1122009IECROMANIAE.ON - MOLDOVA
TTUS ONAN-ONAF1500066/20± 9x1,78YNd1112009IECSIRIASTEEL TECH - SIRIA
TTUS-ONAN20000/2500020/6,6±8x1.5YNyn012008IECGREECEPPC
TTUS-ONAN/ONAF20000/25000150/15.75-216x1.25;-10x1.25Dyn112008IECGREECEInternational Wind Parks of Achaia
TTUS-ONAN20000/25000150/15,75/216x1.25;-10x1.25Dyn122008IECGREECETERNA
TTUS-ONAN20000/25000161.25/6.6±8x1.5YNd112008IECGREECEABB
TTUS-ONAF25000110/20± 9x1,78YNd1112008IECROMANIATRANSILVANIA NORD
TTUS-ONAF25000110/6,3± 9x1,78YNd1112008IECROMANIACEMROM CONSTANTA
TTUS-ONAN/ONAF400011/6,3±8x1,5Yny1222007IECEGYPTVATECH
TTUS-ONAN/ONAF32000/4000066/6,3±8x1,25Dyn1112007IECEGYPTEGEMAC/ASA Aut.-
TTUS-ONAN/ONAF20000/12000/800066/20/6,3± 9x1,78YNd11d1142007IECSIRIALENKER- GERMANY
TTUS ONAF25000110/22± 9x1,78YNd1112006IECROMANIAENERGOBIT
TTUS ONAF25000110/20,5± 9x1,78YNd1112006IECROMANIAPORTLAND
TTUS – ONAN/ONAF20000/2600033/11,57x1,33; - 8x1,33Dyn122006IECGHANALUTON ENG. SERVICE Ltd
TTU-ONAN160006,3/15-20NAYNd1112006IECGREECEPPC
TTUS – ONAN/ONAF45000132/333x1,67; -9x1,67YNd122005IECJORDANNEPCO
TTUS – ONAN3000066/20± 9x1,78YNd1142005IECSIRIAPEEGT
TTUS-ONAN/ONAF20000/2600033/11,57x1,33; -8x1,33Dyn112005IECGHANALUTON ENG. SERVICE Ltd
TTUS-ONAN/ONAF20000/2500066/118x1,25; -8x1,25Dyn1152005IECEGYPTEGEMAC
TTUS-ONAF25000110/10± 9x1,78YNd1112005IECROMANIAMUNTENIA SUD
TTUS ONAF25000110/22± 9x1,78YNd1112004IECROMANIAENERGOBIT
TTUS - ONAN3000066/20±9x1,78YNd1142004IECSIRIAPEEGT
TTUS – ONAN/ONAF16000132/333x1,67; -9x1,67YNd-112004IECJORDANNEPCO
TTUS – ONAN300015/0,4±8x1,25YNd1112004IECGREECEPPC
TTUS – ONAN/ONAF11200/1600033/11,55x1,5; -7x1,5Dyn1132003IECiraq GERMANYABB//IRAQ - MALKANDY
TTUS – ONAN/ONAF17500/25000132/33±8x1.25YNd122003IECIraq GERMANYABB//IRAQ - OLD DOKAN
TTUS – ONAN/ONAF7000/1000033/11,55x1,5; -7x1,5Dyn1122003IECIraq GERMANYABB//IRAQ - QALADIZA
TTUS – ONAN/ONAF7000/1000033/11,55x1,5; -7x1,5Dyn1112003IECIRAKABB // IRAQ - ARBAT
TTUS – ONAN/ONAF6300132/6,3±8x1.5YNd1112003IECIraq GERMANYABB//IRAQ - NEW DOKAN
TTUS - ONAN3000066/20±9x1,78YNd1142003IECSIRIAPEEGT
TTUS – ONAN/ONAF20000/2500066/228x1,25; - 8x1,25Dyn1122002IECEGYPT{ABB} - EL-ESLAH
TTUS – ONAN630066/3310x1,25; - 10x1,25YNd1112002IECETHIOPIAEEPCO
TTUS-ONAN/ONAF2000033/11.58x1,25; - 8x1,25Dyn112001IECGHANAECG
TTUS-ONAN/ONAF40000132/333x1.67; -9x1.67Ynd-122001IECJORDANNEPCO/ ISHTAFINA
TTUS-ONAN/ONAF16000132/333x1.67; -9x1.67YNd-112001IECJORDANNEPCO/ KARAK S/S
TTUS-ONAN/ONAF25000132/333x1.67; -9x1.67YNd-112001IECJORDANNEPCO/ MA’AH S/S
TTUS - ONAN7500110/10.59x1.78; - 9x1.78YN d-1112001IECALBAINKESH
TTUS - ONAN10000110/10.59x1.78; - 9x1.78YN d-1112001IECALBAINKESH
TTUS-ONAN/ONAF16000132/333x1.67; -9x1.67YNd-112001IECJORDANNEPCO/ RASHADIYA S/S
TTUS-ONAN/ONAF2500066/11±8x1.25Dyn-1112000IECEGYPTEEA
TTUS-ONAN/ONAF2500066/7.2±8x1.25Dyn-1122000IECEGYPTEEA
TTUS-ONAN/ONAF15000/2000066/20±9x1.78YNd-1112000IECSIRIAPEEGT
TTUS-ONAN/ONAF25000/3000066/20±9x1.78YNd-1122000IECSIRIAPEEGT
TTUS-ONAN/ONAF3000066/20±9x1.78Ynd1122000IECSIRIAPEEGT
TTUS-ONAN/ANAF2500066/11±8x1.25Dyn-1162000IECEGYPTEEA
TTUS-ONAN/ONAF20000/25000150/15.75-216x1.25; -10x1.25Dyn112000IEC/ANSIGREECEPPC
TTUS-ONAN-ONAF20000/2500066/22±8x1.25Dyn1151999IECEGYPTEEA
TTUS-ONANONAF20000/2500066/23.1±8x1.25Dyn1111999IECEGYPTEEA
TTUS-ONAN2000033/117x1.33; -8x1.33Dyn111999ANSIGHANAECG
TTUS-ONAN-ONAF20000/2500066/11±8x1.25Dyn1141999IECEGYPTEEA
TTUS-ONAN/ONAF20000/2500066/23.5±8x1.25Dyn11151997IECEGYPTEEA
TTUS-ONAN-ONAF15000/2000066/20±9x1.78YNd11171996IECSIRIAPEEGE
TTUS-ONAN/ONAF25000/3000066/20±9x1.78YNd1181996IECSIRIAPEEGE
TTUS-ONAN/ONAF15000/2000066/11±8x1.25Dyn1151995IECEGYPTEEA
TTUS-ONAN/ONAF30000/45000132/336x1.67; -10x1.67Yd-121995IECMALAEZIATNB
TTUS-ONAN/ONAF10000/13000132/11.5±13x0.769DYn11101995BSPAKISTANWAPDA
TTUS-ONAN/ONAF10000/1300066/11.5±13x0.769DYn11101995BSPAKISTANWAPDA
TTUS-ONAN/ONAF25000/3000066/20±9x1.78YNd1141995IECSIRIAPEEGT
TTUS-ONAN/ONAF38000/38000/4500154/30/13.8±8x1.25YNynd-a-111995IECTURKEYTEK
TTUS-ONAN15000132/116x1.67; -10x1.67Yy-081995IECMALAEZIATNB
TTUS-ONAN15000132/11/116x1.67; -9x1.67Yyn 011995IECMALAEZIATNB
TTUS-ONAF20000/31500132/11.58x1.67; -12x1.67YNd1151995ANSICIPRUSEAC
TTUS-ONAF10000/16000132/11.5±8x1.67YNd1111995ANSICIPRUSEAC
TTUS-ONAF1000066/11.51±7x1.43Dyn1121995ANSICIPRUSEAC
TTUS-ONAF20000/30000132/116x1.67; -9x1.67YNd1121995IECMALAEZIATNB
TTUS-ONAN20000/30000132/11/11±8x1.67Yyn0d121995IECMALAEZIATNB
TTUS-ONAN20000150/13.8±2x2.5YNd121995IECTURKEYTEK
TTUS-ONAF2000066/20±9x1.77YNd1141995IECSIRIAPEEGT
TTUS-ONAN/ONAF30000/45000132/336x1.67; -10x1.67Yd-131994IECMALAEZIATNB
TTUS-ONAN15000132/116x1.67; -10x1.67Yy-051994IECMALAEZIATNB
TTUS-ONAN15000132/11/116x1.67; -9x1.67Yyn 021994IECMALAEZIATNB
TTUS-ONAN1500033/116x1.67; -9x1.67Dyn 1121994IECMALAEZIATNB
TTUS-ONAN20000/3000033/116x1.67; -10x1.67Dy-11311994IECMALAEZIATNB
TTUS-ONAF20000/30000132/116x1.67; -9x1.67YNd1181994IECMALAEZIATNB
TTU-ONAN20000/30000132/11/11NAYyn-051994IECMALAEZIATNB
TTUS-ONAN/ONAF20000/25000154/34.5±8x1.25YNyn-011993IECTURKEYKATALAN P/P
TTUS-ONAN15000132/116x1.67; -10x1.67YNy-011993IECMALAEZIATNB
TTUS-ONAN15000132/11/116x1.67; -9x1.67YNynyn 011993IECMALAEZIATNB
TTUS-ONAN20000/3000033/116x1.67; -10x1.67Dy-11121993IECMALAEZIATNB
TTUS-ONAN1600033/11±4-6x1.25Dyn-1141993BSZIMBABWEZESA S/S
TTUS-ONAF25000154/34.5±8x1.25YNyn-011993IECTURKEYYENICE P/P
TTU-ONAN20000/30000132/11/116x1.67; -9x1.67YNynyn 011993IECMALAEZIATNB
TTUS-ONAN/ONAF20000/26000132/11.5±13x0.769Dyn-111992BSPAKISTANETD 103
TTUS-ONAN/ONAF10000/13000132/11.5±13x0.769Dy-1121992BSPAKISTANETD 103
TTUS-ONAN/ONAF10000/1300066/11.5±13x0.769Dy-1111992BSPAKISTANETD 103
TTUS-ONAN/ONAF31500/40000132/66±13x0.77YNyn-0101992BSPAKISTANWAPDA 414
TTUS-ONAN/ONAF20000/26000132/11.5±13x0.769Dy-1191992BSPAKISTANWAPDA 414
TTUS-ONAN/ONAF10000/13000132/11.5±13x0.769Dy-1151992BSPAKISTANWAPDA 414
TTUS-ONAN/ONAF31500/40000132/66/11.5±13x1.3YNyn-061992BSPAKISTANWAPDA 908
TTUS-ONAN1750066/11±6x1.67YNd-1121992IECMALAEZIAEPE
TTUS-ONAF25000154/34.5±8x1.25YNyn-011992IECTURKEYTEK ANKARA
TTUS-ONAF50000154/34.5±8x1.25YNyn-031992IECTURKEYTEK ANKARA
TTUS-ONAF500066/114x1.25; -12X1.25Dy-1111991BSUGANDAUEB
TTUS-ONAF250066/114X1.25; -12x1.25Dyn-111991BSUGANDAUEB
TTUS-ONAN750033/1110x1.25; -10x1.25YNd-1161991IECMALAEZIANEB
TTU-ONAN/ONAF10000/1250069/13.81x1.25; -4x2.5Dy-111991ABNDBRAZILCEPISA S/S
TTU-ONAN/ONAF5000/650069/34.51x1.25; -4x2.5Dy-141991ABNDBRAZILCEPISA S/S
TTUS-ONAN/ONAF15000/2000069/13.84x2.5; -4x2.5Dy-111991ABNDBRAZILCEMAR S/S
TTUS-ONAN/ONAF15000/20000132/334x1.25; -12x1.25YNyn-021991BSUGANDAUEB
TTUS-ONAN/ONAF32000/40000132/334x1.25; -12x1.25YNyn-011991BSUGANDAUEB
TTUS-ONAN/ONAF32000/40000132/11.556x1.25; -10x1.25YNyn-011991BSUGANDAUEB
TTUS-ONAF20000132/114x1.25; -12x1.25YNd-111991BSUGANDAUEB
TTU-ONAN1500033/116X1.67; -9x1.67Dyn-1181991IECMALAEZIANEB
TTU-ONAN30000132/11/118x1.25; -16x1.25YNynd161991BSPAKISTANKESK
TTU-ONAN2000033/11-YNd-111991BSUGANDAUEB
TTUS-ONAN630066/11.5±4x2.5YNzn-1121990BSPAKISTANWAPDA 407
TTUS-ONAN25000154/34.5±8x1.25YNyn-011990IECTURKEYGEZENDE P/P
TTUS-ONAF20000/26000132/11.5±13x0.769Dyn-11531990BSPAKISTANWAPDA 407
TTUS-ONAF10000/1300066/11.5±13x0.69DYn-11101990BSPAKISTANWAPDA 407
TTUS-ONAN6300132/34.5±4x2.5YNz-1141989BS/IECPAKISTANWAPDA 407
TTUS-ONAF20000/26000132/11.5±13x0.77Dyn-1131989BSPAKISTANWAPDA 407
TTUS-ONAF31500/40000132/66/11.58x1.25; -16x1.25YNyn-0,d161989BSPAKISTANWAPDA 407
TTUS-ONAF25000154/34.5±8x1.25YNyn-011989IECTURKEYGEZENDE P/P
TTUS-ONAF20000/26600132/11.5±13X0.77Dyn-151988ABNDBRAZILCOSERN S/S
TTUS-ONAF12500/1500039/13.8±2x2.5Dyn-141988ABNDBRAZILCELPA S/S
